20 FT Car Hauler 10K with Electric Brakes, Drive Over Fenders And Optional Winch and Straps

Open flatbed trailer perfect for hauling cars, trucks, and toys. It could also haul pallets or long cargo and some equipment. Axle Straps (4) and Tie Downs (4) included with rental at no additional charge if needed to secure a vehicle. Comes equipped with an optional winch.

Size of ball required: 2 5/16”

Lighting Connector: 7 way

1 Idler Axle and 1 Braking Axle

Tie Downs: Stake Pockets and D-Rings

Maximum allowable tire pressure: 70 PSI

Approximate ball height to tow level: 17” Lower is ok, Higher can be problematic

Trailer Weight: 2,700 LBS

Maximum Cargo Capacity: 7,700 LBS

Deck Dimensions 83”W x 20’L (18 FT Deck + 2 FT Dovetail) x 22” H

Dovetail Height 19” when level and the ramps are 5’L x 14”W

Entire Trailer Dimensions 8’6”W x 24.5’L x 24”H

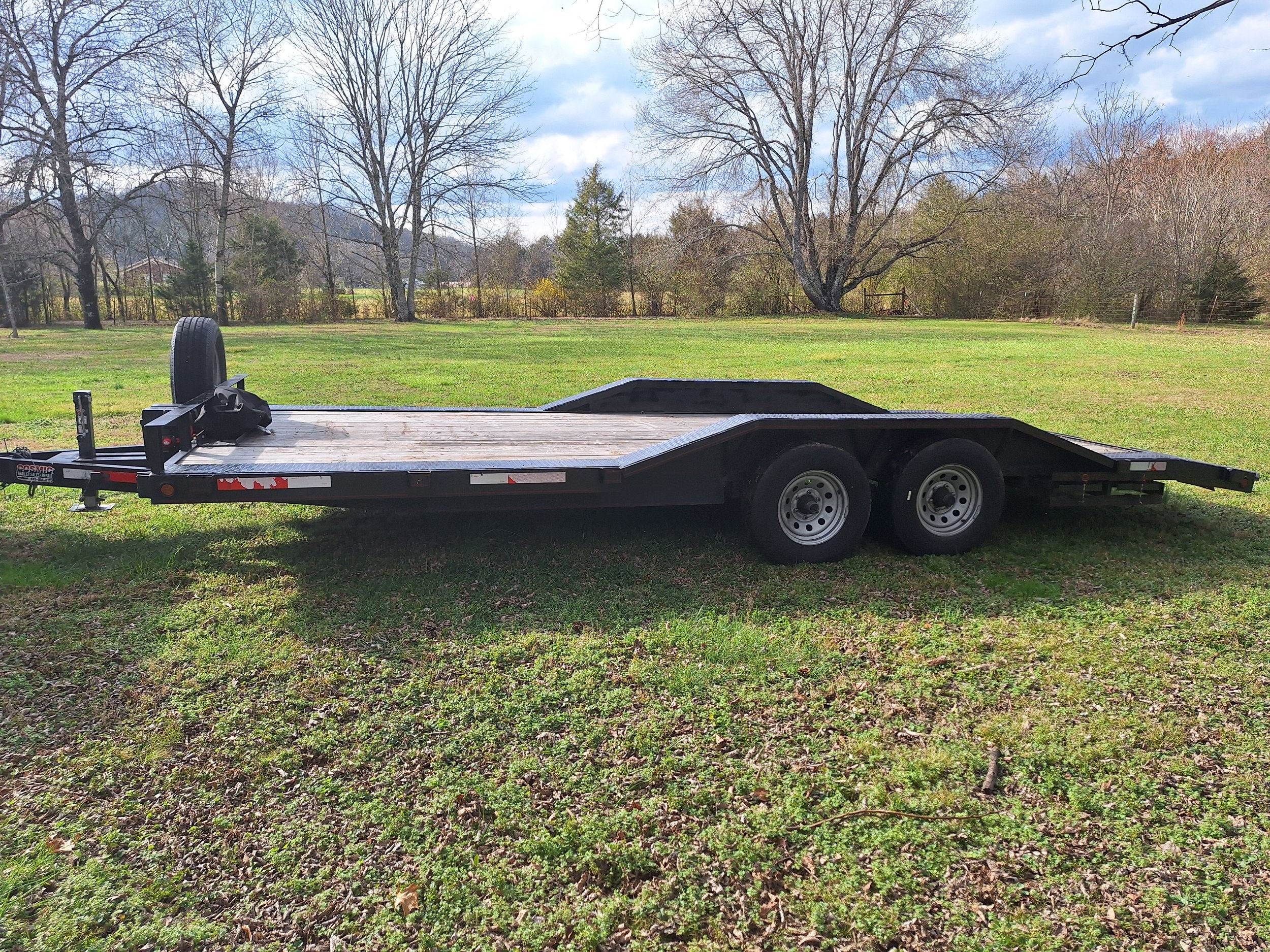

Flatbed trailer on grass field
Flatbed utility trailer with dual axles and a spare tire on grass, surrounded by trees in a rural setting.
Flatbed trailer with spare tire on grass
Badland ZXR 12000 lb electric winch with cable and hook on a wooden platform.
